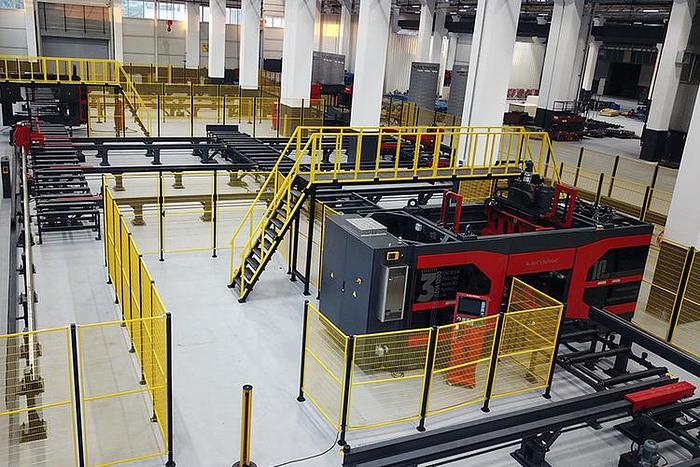

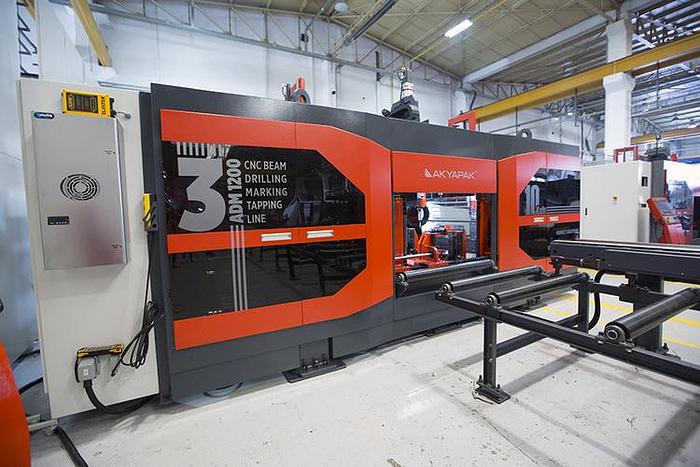

3ADM 10 Axis Three Spindle CNC Drill Line

3ADM 10 Axis Three Spindle CNC Drill Line

orCall +1 972-241-0790

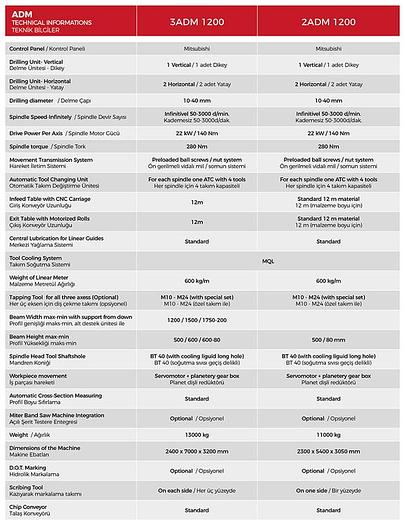

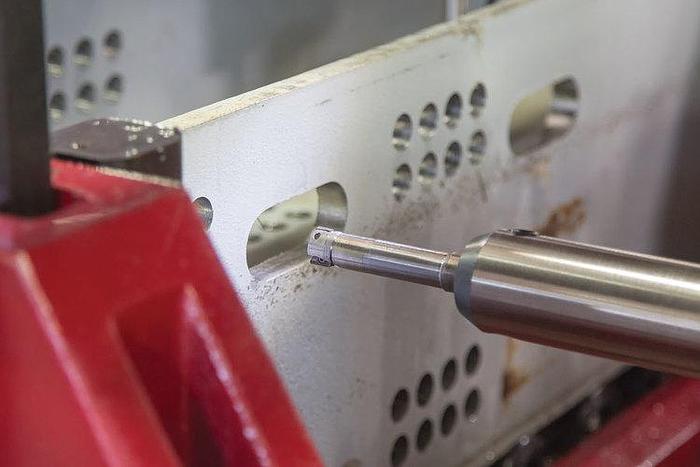

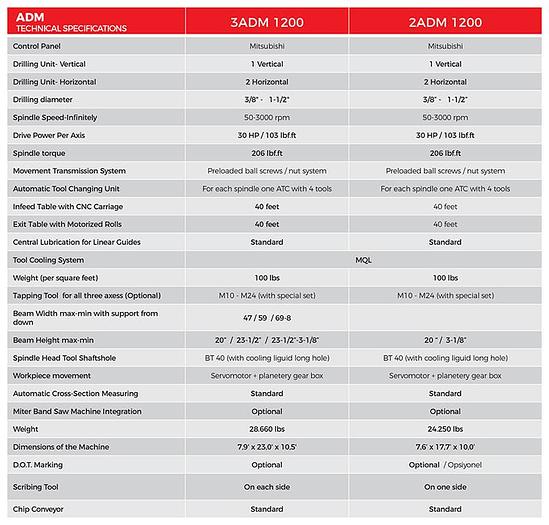

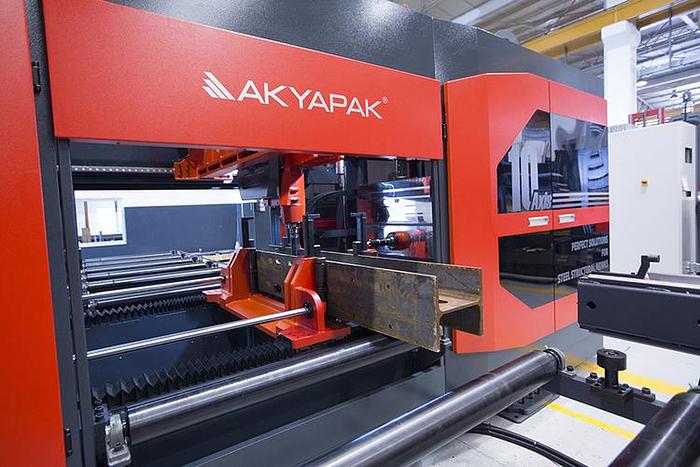

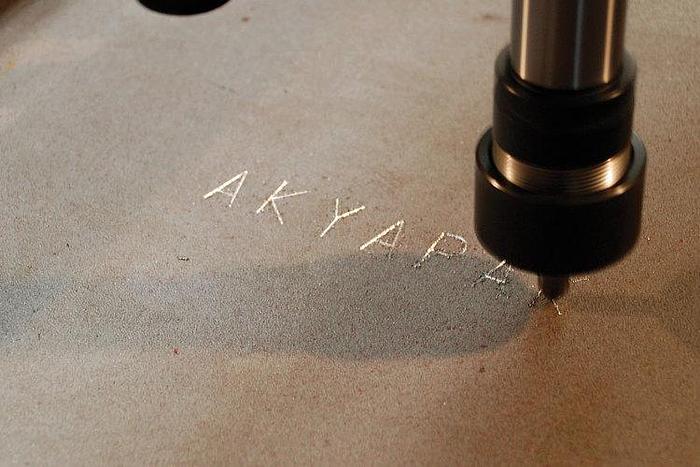

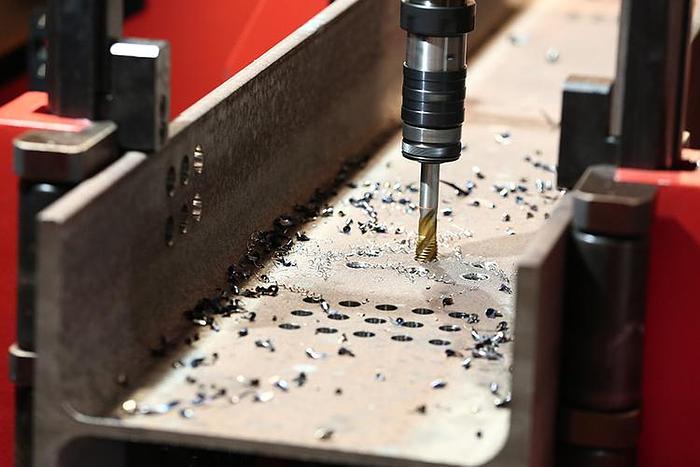

ADM Drilling Lines features three independent spindles with a sub-axis of 20” X 20” on each spindle for 10 total CNC controlled axes. The capacity of drilling the profile from three sides independently results in a very high through-put rate at a very competitive price. Drilling, milling, tapping, countersinking and layout marking coupled with a 6 station tool changer (per spindle) ensures your product is complete in one pass. Working length 40’ Profile height 2” – 48” Profile width 2” – 48” Support table height 40” Length 50’ Height 10’ Width 10’ Weight 26.500 lbs Maximum tool length 12” Drilling capacity 3/8” – 1-1/4” RPM 10 rpm - 3000 rpm Spindle Power 15 hp Total Power 60 hp Tools ATC 6 stations (per spindle)


Model3ADM 1200
StatusFor Sale
Power15 hp
RPM4,500 RPM
