DENER DDM 40-15 Servo Electric Press Brake

DENER DDM 40-15 Servo Electric Press Brake

orCall +1 972-241-0790

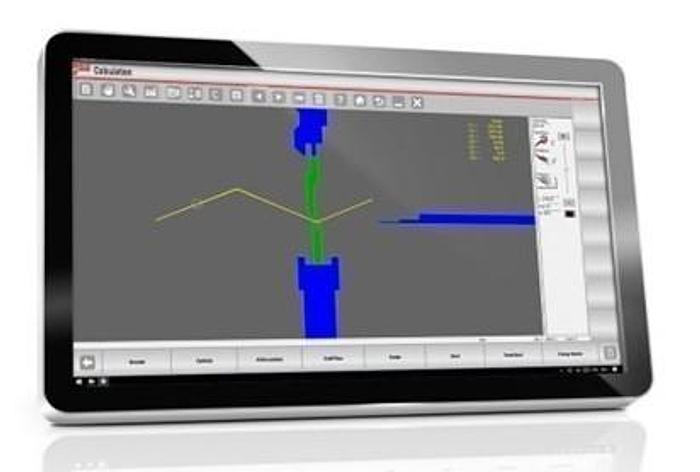

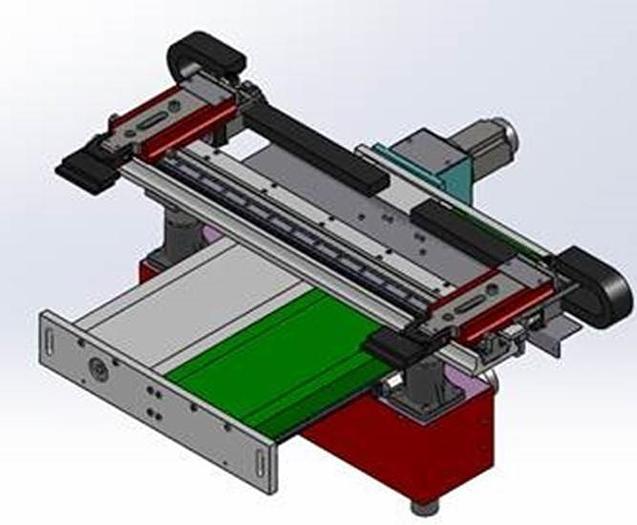

Bending Length: 1530 Capacity: 40t Dener CNC Servo Electric Press Brakes are no-hydraulic, flexible, reliable and advance bending machines. Next generation machine idea combines green-eco friendly machines productivity, accuracy, flexibility and reliability. The new concept offers low power consumption, less maintenance, no hydraulic oil for operation. Servo Electric Press Brake comes with advance CNC controller, fast and accurate punch and die clamping multi axis back gauge system. Operators simply make perfect sheet metal parts with very low cost. Capacity 44 US Tons 40 metric tons Ram Repeatability ± 0.0004 Inch ± 0.01mm Approach Speed Max. 3.5 IPS 90 mm/s Bend Speed Max. 0.78 IPS 20 mm/s Return Speed Max. 3.5 IPS 90 mm/s Punch holder Height 4.72 Inch 120 mm Back Gauge Speed 39 IPS 1000 mm/s Back Gauge Repeat Accuracy 0.002” 0.05 mm Back Gauge X Travel 26.5 Inch 750 mm Max back gauge position 40 Inch 1015 mm R Axis Travel 5.9 Inch 150 mm Bending Length 60 Inch 1530 mm Distance Between Frames 80 Inch 2040 mm Ram Stroke 11.81 Inch 300 mm Daylight w/o punch holders 29.0 Inch 660 mm Table Height 36.22 Inch 920 mm Table Width 3.74 Inch 95 mm Weight 10,140 lbs 4,600 kg Main Motor 14.75 Hp 11 kw Standard Equipment • Euro/American type sectioned punch holder • ESA 675 W 21″ 3D control unit • 4 Axis – Y1, Y2, X, R • Side and back safety gates • Foot pedal with emergency stop button • 480 V, 50-60 HZ, 3Ph Electrical system • Electrical Cabinet Cooling System Optional Equipment • 4-Axis Backgauge (X, R, Z1, Z2) • 5-Axis Back Gauge (X, X’, R, Z1, Z2) • Wilson Express Clamp • Hydraulic Clamping Systems • DSP CE Certificated front finger protection system • AKAS Safety Laser System • ESAbend 3D • Mbend by Metali


ModelDDM 40-15 Servo Electric Press Brake
Model Number40 - 15
StatusFor Sale
Tonnage44 T
Bending Length60"
