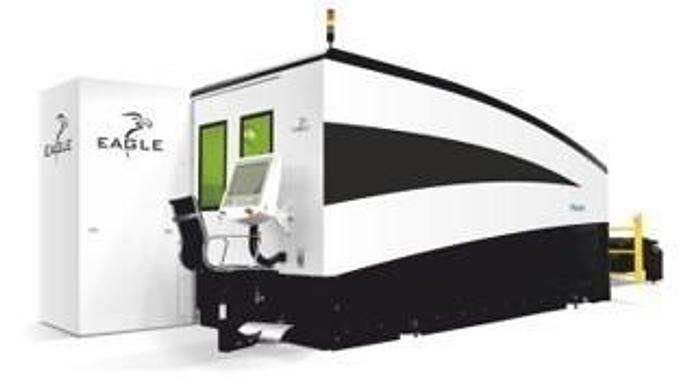

Eagle iNspire 3015 20kW Fiber Laser

Eagle iNspire 3015 20kW Fiber Laser

orCall +1 972-241-0790


Eagle iNspire -pure technology. Thanks to the unique design of the machine and carefully selected components, dynamic linear motors on all axes, modern composite material on the body, carbon fiber traverse and eVa cutting head, iNspire provides high working efficiency. The iNspire laser cutting machine achieves a positioning speed of up to 14,000 ipm and acceleration of 6G. The iNspire models are available with a fiber laser with 6 to 30 kW power. Machine Model iNspire 3015-20 Drives (all axes) Linear motors Wotking area (mm) 1500 X 3000 Max weight - material 900 kg Positiion speed - X 10,000 ipm Positiion speed - Y 10,000 ipm Position speed - Z 10,000 ipm Position speed simutaneous 14,000 ipm Acceleration 6G Cutting accuracy 0.002" +/- Repeatability 0.001" +/- Max cut speed 6,000 ipm Control Beckoff TwinCAT CNC Laser source IPG Cutting head Eagle


ModeliNsire 3015-20
Stock Number91
StatusFor Sale
Wattage20 kw
IPM14000 ipm
