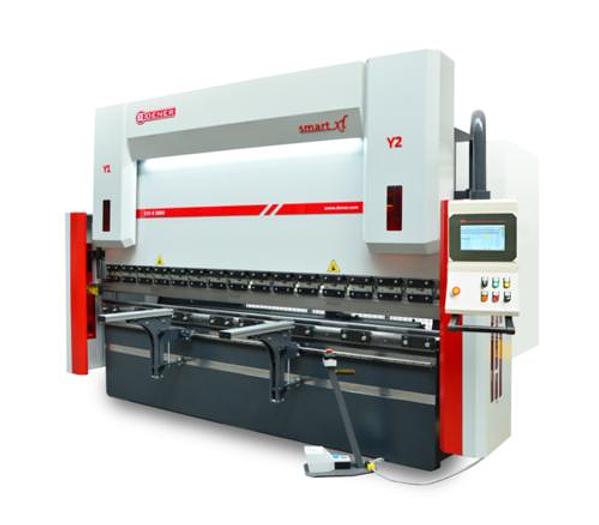

DENER Smart XL 40-15 Hydraulic Press Brake

Standard Equipment • Y1, Y2, X, R Axis • Europen type punch holder • Europen type die holder • 10″ Esa S 630 touch screen 2D control unit • Deeper Throat Depths (450 mm) • Higher Stroke and Longer Daylight (220 mm) • Hoerbiger or Rexroth hydraulic system • Foot pedal with emergency stop button • Linear Guided Front Support Arms • Side and back safety gates Optional Equipment • Delem Da 52 Control unit • Cybelec Cybtouch 10 Control unit • X and R Backgauge • Quick tool change system • Manual crowning • CNC crowning • Light curtain with CE norm • Multi V Die • Hydraulic Oil Cooling System • Electrical Cabinet Cooling System • Wila mechanic Tool Holding System • Wila hydraulic Tool Holding System Capacity 34 US Tons 40 metric tons Ram Repeatability ± 0.0004 Inch ± 0.01mm Approach Speed Max. 7 IPS 180 mm/s Bend Speed Max. .4 IPS 10 mm/s Return Speed Max. 6.3 IPS 1650 mm/s Punch holder Height 2.4 Inch 600 mm Back Gauge Speed 295 IPM 125m/s Back Gauge Repeat 0.002" 0.05 mm Back Gauge X Travel 29.6 Inch 750 mm Back Gauge max gauge 40 Inch 1015mm R Axis Travel 9.8 Inch 250 mm Bending Length 120 inch 3050 mm Distance Between Frames 49 Inch 1250 mm Ram Stroke 8.7 220 Daylight w/o punch hlds 16.2 Inch 410 mm Throat Depth 15.75 Inch 400 Table Height 36.22 Inch 920 mm Table Width 3.74 Inch 95 mm Weight 9,350 4,250 kg Oil Capacity 25 gal 100 liters
